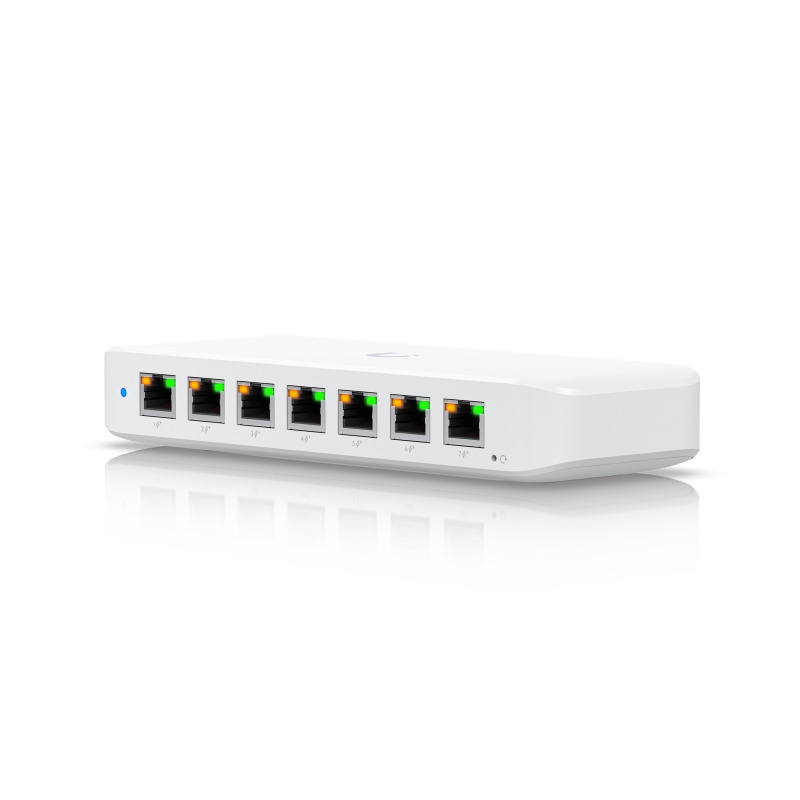

Ubiquiti USW-Ultra Unifi Switch

Ubiquiti USW-Ultra UniFi Switch Ultra

USW-Ultra is a UniFi PoE switch for managed business networks, with 8 (7 PoE+; 1 PoE++ input) GbE RJ45 ports, 16 Gbps switching capacity, and PoE++ input: 42W; PoE+ input: 16W; 60W PoE adapter input: 42W; 60W AC adapter input: 52W; 210W AC adapter input: up to 202W PoE availability.

Key Features

• A compact, Layer 2, 8-port GbE PoE switch with versatile mounting options.
• High-density switching with 8 (7 PoE+; 1 PoE++ input) GbE RJ45 ports.
• Performance designed for demanding UniFi networks, including 16 Gbps switching capacity.
• Integrated PoE support with PoE++ input: 42W; PoE+ input: 16W; 60W PoE adapter input: 42W; 60W AC adapter input: 52W; 210W AC adapter input: up to 202W total PoE availability.
• Compact desktop, wall, magnetic form factor for clean installation in network cabinets or branches.

Technical Specifications

• Dimensions: 203 x 76 x 33 mm
• Weight: Device: 320 g; Wall mount: 45 g
• Connectivity: 8 (7 PoE+; 1 PoE++ input) GbE RJ45 ports
• Power method: (1) AC/DC adapter (Excluded); (1) PoE++
• Max. power consumption: 9W (Excluding PoE Output) with PoE input; 8W (Excluding PoE Output) with adapter input; 210W (Including PoE Output) with 210W AC adapter input
• PoE budget: PoE++ input: 42W; PoE+ input: 16W; 60W PoE adapter input: 42W; 60W AC adapter input: 52W; 210W AC adapter input: up to 202W
• Switching capacity: 16 Gbps
• Total non-blocking throughput: 8 Gbps
• Forwarding rate: 12 Mpps
• Form factor / mounting: Compact desktop, wall, magnetic
• Operating temperature: PoE++ input: -30 to 60° C; 60W AC adapter input: -20 to 45° C; 210W AC adapter input: -20 to 60° C
• Operating humidity: 10 to 90% noncondensing
• Certifications: CE, FCC, IC, Anatel: 06367-24-08356
• Application requirements: Version 8.0.28 and later
• Supported VLANs: 256
• MAC Address Table Size: 4,000
