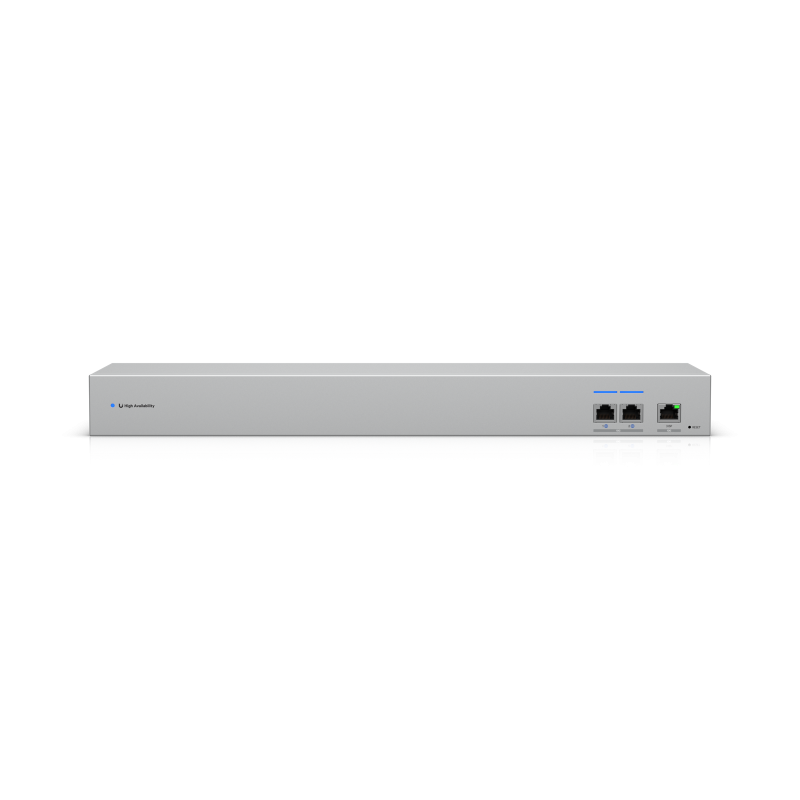

Ubiquiti USW-WAN-RJ45 UniFi 10GbE WAN Switch linking two Shadow Mode High Availability UniFi Gateways to a single ISP

Ubiquiti USW-WAN-RJ45 UniFi WAN Switch RJ45

USW-WAN-RJ45 is a UniFi switch for managed business networks, with 1 GbE RJ45 ports, 3 10 GbE RJ45 ports, 20 Gbps switching capacity.

Key Features

• 10 GbE WAN Switch linking two Shadow Mode High Availability UniFi Gateways to a single ISP.
• High-density switching with 1 GbE RJ45 ports, 3 10 GbE RJ45 ports.
• Performance designed for demanding UniFi networks, including 20 Gbps switching capacity.
• Rack mount (1U) form factor for clean installation in network cabinets or branches.
• Managed with Version 9.1.120 and later for centralised UniFi monitoring and control.

Technical Specifications

• Dimensions: 442.4 x 120 x 43.7 mm
• Weight: Without mounting brackets: 2.3 kg; With mounting brackets: 2.4 kg
• Connectivity: 1 GbE RJ45 ports, 3 10 GbE RJ45 ports
• Power method: (2) Universal input, 100–240V AC, 50/60 Hz
• Max. power consumption: 18W
• Switching capacity: 20 Gbps
• Total non-blocking throughput: 10 Gbps
• Forwarding rate: 15 Mpps
• Form factor / mounting: Rack mount (1U)
• Operating temperature: -5 to 40° C
• Operating humidity: 10 to 90% noncondensing
• Certifications: CE, FCC, IC, Anatel: 04273-25-08356
• Application requirements: Version 9.1.120 and later
• Redundancy: (2) AC inputs
