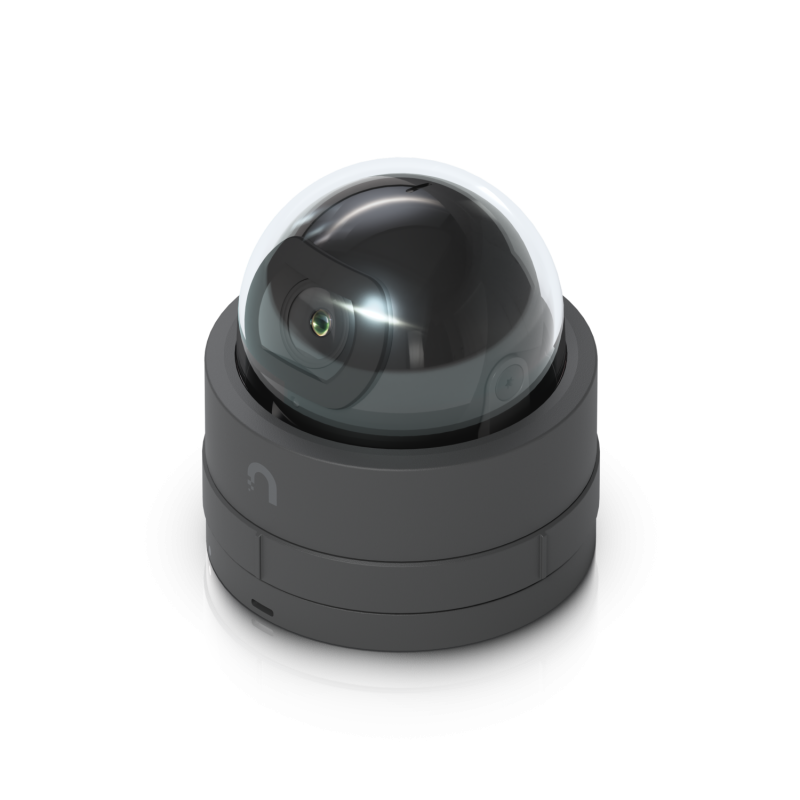

Ubiquiti UVC-G5-Dome-Ultra-B Black Unifi G5 Dome Ultra
$169.00
Tax included
Ubiquiti UVC-G5-Dome-Ultra-B Black Unifi G5 Dome UltraUbiquiti Unifi UVC-G5-Dome-Ultra-B Black modelUltra-compact and tamper-resistant 2K HD PoE camera with night vision designed for low-profile indoor security.2K (4MP) video resolutionUltra-wide viewing angle (102.4°)20 m (65 ft) IR night visionAI event detectionsConnect and power using PoEOptional Flush Mount for in-ceiling installationUVC-G5-Dome-Ultra-B Technical SpecificationsMechanicalDimensionsØ63.6 x 68.2 mmWeight175 g Enclosure materialAluminum alloy, polycarbonateMount materialStainless steelResistanceIK06OpticsSensor1/2.4" CMOSLensFixed focal lengthView angleH: 102.4°, V: 54.9°, D: 120.6°Night modeBuilt-in IR LED illumination and IR cut filterIR distance20 m VideoVideo compressionH.264Resolution4MP 2688 x 1512 (16:9)Max. fram...
Ubiquiti UVC-G5-Dome-Ultra-B Black Unifi G5 Dome Ultra
Ubiquiti Unifi UVC-G5-Dome-Ultra-B Black model
Ultra-compact and tamper-resistant 2K HD PoE camera with night vision designed for low-profile indoor security.
Ultra-compact and tamper-resistant 2K HD PoE camera with night vision designed for low-profile indoor security.
2K (4MP) video resolution
Ultra-wide viewing angle (102.4°)
20 m (65 ft) IR night vision
AI event detections
Connect and power using PoE
Optional Flush Mount for in-ceiling installation
UVC-G5-Dome-Ultra-B Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | Ø63.6 x 68.2 mm |
| Weight | 175 g |
| Enclosure material | Aluminum alloy, polycarbonate |
| Mount material | Stainless steel |
| Resistance | IK06 |
| Optics | |
| Sensor | 1/2.4" CMOS |
| Lens | Fixed focal length |
| View angle | H: 102.4°, V: 54.9°, D: 120.6° |
| Night mode | Built-in IR LED illumination and IR cut filter |
| IR distance | 20 m |
| Video | |
| Video compression | H.264 |
| Resolution | 4MP 2688 x 1512 (16:9) |
| Max. frame rate | 30 FPS |
| Image settings | Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay |
| System | |
| Processor | Dual-core Arm® Cortex®-A7 based chip |
| Networking interface | 10/100 MbE RJ45 port |
| Max. power consumption | 4.2W |
| Power method | PoE |
| Supported voltage range | 37–57V DC |
| Button | Factory reset |
| Mounting | Surface mount |
| Ambient operating temperature | -20 to 40º C |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | FCC, IC, CE |
| Software | |
| Web application | UniFi Protect |
| Mobile app | UniFi Protect iOS™ and Android™ |
Product information source: Streakwave product page.
